Intrinsics matrix

Introduction

In this section I explain all necessary steps to obtain the intrinsics matrix of a camera (Kin).

Perspective

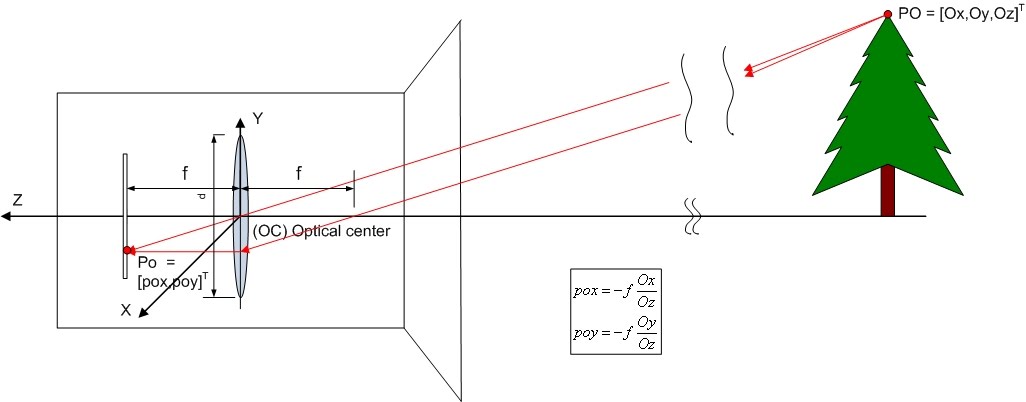

Starting from camera model we can project a 3D point, referenced to optical center (OC) into image sensor, see figure 1.

3D to 2D projection

Figure 1 – 3D to 2D projection

We can see that we define f as negative value, physically this means that the image is inverted.

We use the ideal pinhole camera model (d = 0), it’s a good approximation when camera is in focus. The image sensor is located at Fz=f, this means that the focus is in the infinite point, except that d=0 then all objects are in focus.

We have to note that if the light rays comes from infinite point they arrives parallel to lens, and they crosses in the focal point.

From 2D point to pixel

If we want to calculate the image pixel (x,y) corresponding to projected 2D previous calculated point (po), we have to overlay that point into CCD (matrix of pixels) and assign po to the nearest pixel (see figure 2).

Pixel density

Figure 2 – Pixel density

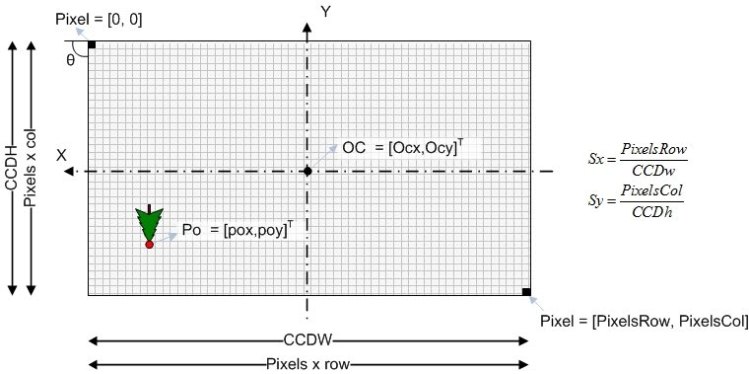

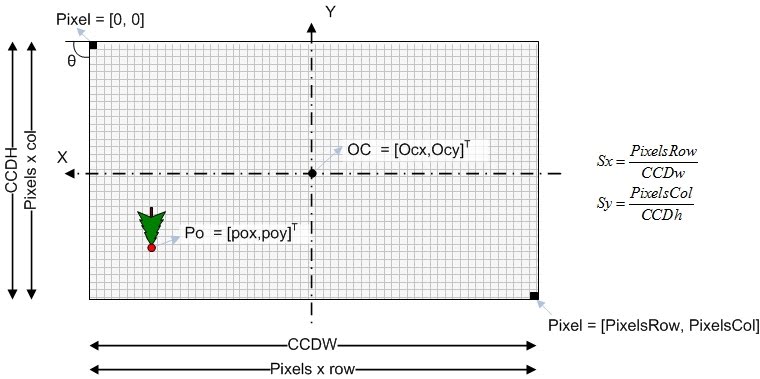

To assign the correct pixel to Po first we have to calculate the pixel densities (Sx, Sy) of the CCD, to do that we have to divide the number of pixels of each dimension by the CCD size.

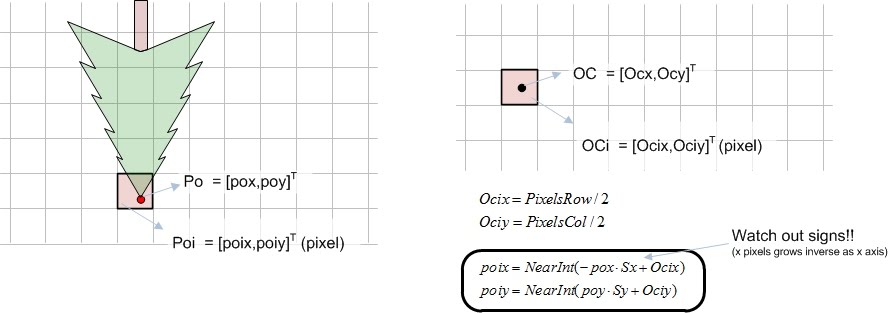

Calculating pixels

Figure 3 – Calculating pixels

After that we have to apply an offset correction due to the 0,0 pixel is on the upper left corner of CCD, and our center of coordinates (X and Y) is in the CCD center. And finally we have to get the nearest integer.

Corrections – Skew factor

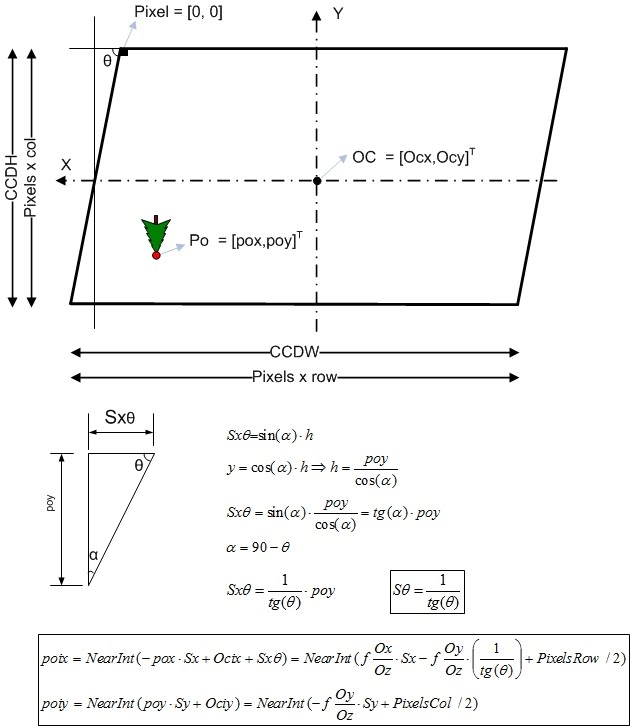

If CCD pixels columns and rows are not right aligned, then the CCD shape is like a parallelogram, see figure 4. We can characterize this problem with the skew factor.

Skew factor

Figure 4 – Skew factor

in the previous figure we can see the poi formulas with the skew factor.

Aspect ratio

No aspect ratio correction is needed due to aspect ratio information is intrinsic in Sx and Sy data.

But to work in image (especially videos images) it’s very important to know the following concepts:

  1. Display Aspect Ratio (DAR): Is the horizontal size of image (in length units) divided by vertical size (directly related with CCD size). Usually TV uses DAR = 4/3=1.33 or DAR=16/9= 1.78.
  2. Storage Aspect Ratio (SAR): Is the number of horizontal active pixels divided by the number of vertical active pixels (For example PAL TV uses SAR = 720/576 = 1.25).
  3. Pixel Aspect Ratio (PAR): It is DAR / SAR (For instance in WIDE PAL TV uses DAR = 16/9 and SAR = 720/576 -> PAR = DAR/SAR = 1.422).

PAR = 1 means that the pixel is a perfect square.

Using matrices

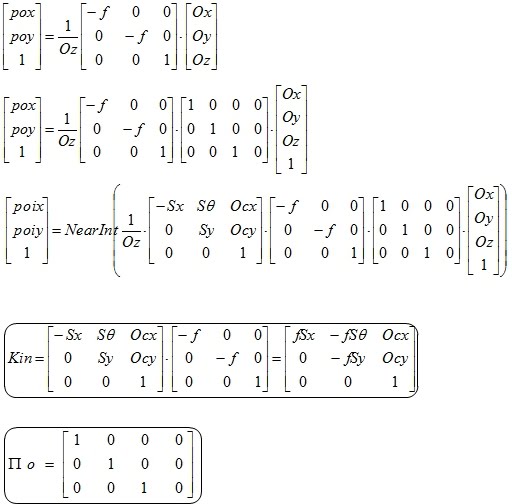

We can use matrices to compact previous equations, in the figure 5 you can follow how to write previous equations using matrix notation. At the end of the figure you can find the intrinsics matrix (Kin) definition.

Matrix notation

Figure 5- Matrix notation

∏o is the 3D to 2D matrix.
