A minimal h264 “encoder” (C++)

Introduction

I always thought that the best approach to complex things is to start from the basis, and once you control this part enter step by step towards more complex parts. With this idea in mind and the aim to improve my understanding of h264 bitstream and its techniques I have created the following code in C++ that generates a compliant h264 file from a YUV420p file.

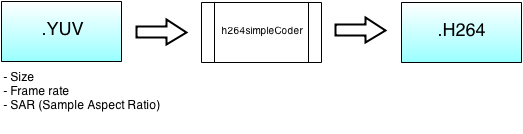

Simple block diagram

Figure 1: Simple block diagram

First of all I have to say that the following source code is NOT a h264 encoder but it generates a compliant (playable) h264 stream, this means that the size of output file will be slightly bigger than the size of the input file. This it is because I have used only I_PCM macroblock codification (non compressed format) to describe the images in h264 stream.

I think that to read and understand this code could be a good starting point to start flirting with the h264 standard, better than dive into the standard (more than 700 pages of dense text).

References

Input files

  • Size:
    • Multiple of 16 in height and width
  • Pixel format:
    • yuv420p
  • Frame rate:
    • Any
  • Aspect ratio:
    • Any

To create a compliant input file you can use ffmpeg, here you have 2 examples. The fisrt example convert any video to a YUV420p 128×96 file.

ffmpeg.exe -i anyvideo.avi -s 128x96 -pix_fmt yuv420p out.yuv

The second example generates a yuv420p blank (green bck) video file of 10secs, 128×96 pixels ,and  25fps (10s x 25fps  = 250 progressive YUV frames):

ffmpeg.exe -t 10 -s 128x96 -f rawvideo -pix_fmt yuv420p -r 25 -i /dev/zero

Using the h264 simple coder

To use this h264 basic coder is very easy, just follow these steps:

  1. Open a YUV420p format file
  2. Open the destination file
  3. Create an instance of CJOCh264encoder (passing the parameter of destination file pointer)
  4. Call IniCoder with the following parameters:
    • nImW: Frame width in pixels
    • nImH: Frame height in pixels
    • nFps: Desired frames per second of the output file (typical values are: 25, 30, 50, etc)
    • SampleFormat: Sample format of the input file. In this implementation only SAMPLE_FORMAT_YUV420p is allowed
    • nSARw Indicates the horizontal size of the sample aspect ratio (typical values are:1, 4, 16, etc)
    • nSARh Indicates the vertical size of the sample aspect ratio (typical values are:1, 3, 9, etc)
  5. Over all frames in the input file:
    • Get the frame data pointer calling GetFramePtr
    • Load a new frame from source file over the pointer returned by GetFramePtr
    • Call CodeAndSaveFrame to code the frame and save it to destination file
  6. Finally, call CloseCoder and close the opened files

If you compile the h264simpleCoder.cpp, you could call the resulting application using this expression:

h264simpleCoder AVsyncTest.yuv OutTest.h264 128 96 25 16 9

The following source code shows how to use the CJOCh264encoder class including error handling.


//============================================================================
// Name        : h264simpleCoder.cpp
// Author      : Jordi Cenzano (www.jordicenzano.name)
// Version     : 1.0
// Copyright   : Copyright Jordi Cenzano 2014
// Description : Simple h264 encoder
//============================================================================

#include <iostream>
#include "CJOCh264encoder.h"

using namespace std;

int main(int argc, char **argv)
{
	int nRc = 1;

	puts("Simple h264 coder by Jordi Cenzano (www.jordicenzano.name)");
	puts("This is NOT a video compressor, only uses I_PCM macroblocks (intra without compression)");
	puts("It is made only for learning purposes");
	puts("**********************************************************");

	if (argc < 3)
	{
 		puts("------------------------------------------------------------------------");
		puts("Usage: h264mincoder input.yuv output.h264 [image width] [image height] [fps] [AR SARw] [AR SARh]");
		puts("Default parameters: Image width=128 Image height=96 Fps=25 SARw=1 SARh=1");
		puts("Assumptions: Input file is yuv420p");
		puts("------------------------------------------------------------------------");
		return nRc;
	}

	char szInputFile[512];
	char szOutputFile[512];
	int nImWidth = 128;
	int nImHeight = 96;
	int nFps = 25;
	int nSARw = 1;
	int nSARh = 1;

	//Get input file
	strncpy (szInputFile,argv[1],512);

	//Get output file
	strncpy (szOutputFile,argv[2],512);

	//Get image width
	if (argc > 3)
	{
		nImWidth = (int) atol (argv[3]);
		if (nImWidth == 0)
			puts ("Error reading image width input parameter");
	}

	//Get image height
	if (argc > 4)
	{
		nImHeight = (int) atol (argv[4]);
		if (nImHeight == 0)
			puts ("Error reading image height input parameter");
	}

	//Get fps
	if (argc > 5)
	{
		nFps = (int) atol (argv[5]);
		if (nFps == 0)
			puts ("Error reading fps input parameter");
	}

	//Get SARw
	if (argc > 6)
	{
		nSARw = (int) atol (argv[6]);
		if (nSARw == 0)
			puts ("Error reading AR SARw input parameter");
	}

	//Get SARh
	if (argc > 7)
	{
		nSARh = (int) atol (argv[7]);
		if (nSARh == 0)
			puts ("Error reading AR SARh input parameter");
	}

	FILE *pfsrc = NULL;
	FILE *pfdst = NULL;

	pfsrc = fopen (szInputFile,"rb");
	if (pfsrc == NULL)
	{
		puts ("Error opening source file");
		return nRc;
	}

	pfdst = fopen (szOutputFile,"wb");
	if (pfdst == NULL)
	{
		puts ("Error opening destination file");
		return nRc;
	}

	try
	{
		//Instantiate the h264 coder
		CJOCh264encoder *ph264encoder = new CJOCh264encoder(pfdst);

		//Initialize the h264 coder with frame parameters
		ph264encoder->IniCoder(nImWidth,nImHeight,nFps,CJOCh264encoder::SAMPLE_FORMAT_YUV420p, nSARw, nSARh);

		int nSavedFrames = 0;
		char szLog[256];

		//Iterate trough all frames
		while (! feof(pfsrc))
		{
			//Get frame pointer to fill
			void *pFrame = ph264encoder->GetFramePtr ();

			//Get the size allocated in pFrame
			unsigned int nFrameSize = ph264encoder->GetFrameSize();

			//Load frame from disk and load it into pFrame
			size_t nreaded = fread (pFrame,1, nFrameSize, pfsrc);
			if (nreaded != nFrameSize)
			{
				if (! feof(pfsrc))
					throw "Error: Reading frame";
			}
			else
			{
				//Encode & save frame
				ph264encoder->CodeAndSaveFrame();

				//Get the number of saved frames
				nSavedFrames = ph264encoder->GetSavedFrames();

				//Show the number of saved / encoded frames iin console
				sprintf(szLog,"Saved frame num: %d", nSavedFrames - 1);
				puts (szLog);
			}
		}

		//Close encoder
		ph264encoder->CloseCoder();

		//Set return code to 0
		nRc = 0;
	}
	catch (const char *szErrorDesc)
	{
		//Show the error description on console
		puts (szErrorDesc);
	}

	//Close previously opened files
	if (pfsrc != NULL)
		fclose (pfsrc);

	if (pfdst != NULL)
		fclose (pfdst);

	return nRc;
}

Classes

The implementation of this h264 minimal encoder it is based in two classes:

  • CJOCh264bitstream
    • It contains useful functions to create the bit oriented stream, it has an exp Golomb coder as well.
  • CJOCh264encoder : CJOCh264bitstream
    • It derives from CJOCh264Bitstream and it contains the h264 oriented functions.

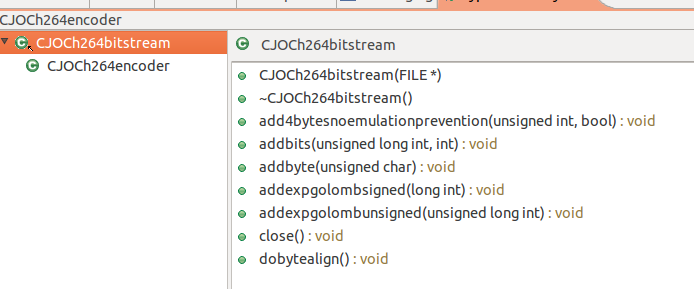

The CJOCh264bitstream class with its public functions

Figure 2: The CJOCh264bitstream class with its public functions

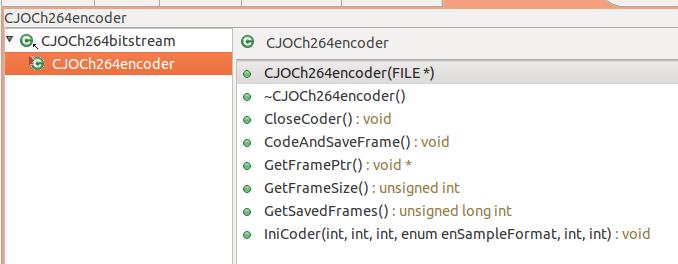

The CJOCh264encoder class with its public functions

Figure 3: The CJOCh264encoder class with its public functions

Source code

  • I have tried to make a readable code including comments and keeping a logical order of functions.
  • You can see and download the latest version of  the source code of this “experiment” from this github link: h264simpleCoder
    • You will find the following files: h264simpleCoder.cpp, CJOCh264bitstream.h, CJOCh264bitstream.cpp, CJOCh264encoder.h, CJOCh264encoder.cpp, makefile
  • In the following sections you can see the source code of CJOCh264bitstream and CJOCh264encoder classes

CJOCh264bitstream (.h and .cpp)

/*
 * CJOCh264bitstream.h
 *
 *  Created on: Aug 23, 2014
 *      Author: Jordi Cenzano (www.jordicenzano.name)
 */

#ifndef CJOCH264BITSTREAM_H_
#define CJOCH264BITSTREAM_H_

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <math.h>

//! h264 bitstream class
/*!
 It is used to create the h264 bit oriented stream, it contains different functions that helps you to create the h264 compliant stream (bit oriented, exp golomb coder)
 */
class CJOCh264bitstream
{
#define BUFFER_SIZE_BITS 24			/*! Buffer size in bits used for emulation prevention */
#define BUFFER_SIZE_BYTES (24/8)	/*! Buffer size in bytes used for emulation prevention */

#define H264_EMULATION_PREVENTION_BYTE 0x03		/*! Emulation prevention byte */

private:

	/*! Buffer  */
	unsigned char m_buffer[BUFFER_SIZE_BITS];

	/*! Bit buffer index  */
	unsigned int m_nLastbitinbuffer;

	/*! Starting byte indicator  */
	unsigned int m_nStartingbyte;

	/*! Pointer to output file */
	FILE *m_pOutFile;

	//! Clears the buffer
	void clearbuffer();

	//! Returns the nNumbit value (1 or 0) of lval
	/*!
	 	 \param lval number to extract the nNumbit value
	 	 \param nNumbit Bit position that we want to know if its 1 or 0 (from 0 to 63)
	 	 \return bit value (1 or 0)
	 */
	static int getbitnum (unsigned long lval, int nNumbit);

	//! Adds 1 bit to the end of h264 bitstream
	/*!
		 \param nVal bit to add at the end of h264 bitstream
	 */
	void addbittostream (int nVal);

	//! Adds 8 bit to the end of h264 bitstream (it is optimized for byte aligned situations)
	/*!
		 \param nVal byte to add at the end of h264 bitstream (from 0 to 255)
	 */
	void addbytetostream (int nVal);

	//! Save all buffer to file
	/*!
		 \param bemulationprevention Indicates if it will insert the emulation prevention byte or not (when it is needed)
	 */
	void savebufferbyte(bool bemulationprevention = true);

public:
	//! Constructor
	/*!
		 \param pOutBinaryFile The output file pointer
	 */
	CJOCh264bitstream(FILE *pOutBinaryFile);

	//! Destructor
	virtual ~CJOCh264bitstream();

	//! Add 4 bytes to h264 bistream without taking into acount the emulation prevention. Used to add the NAL header to the h264 bistream
	/*!
		 \param nVal The 32b value to add
		 \param bDoAlign Indicates if the function will insert 0 in order to create a byte aligned stream before adding nVal 4 bytes to stream. If you try to call this function and the stream is not byte aligned an exception will be thrown
	 */
	void add4bytesnoemulationprevention (unsigned int nVal, bool bDoAlign = false);

	//! Adds nNumbits of lval to the end of h264 bitstream
	/*!
		 \param nVal value to add at the end of the h264 stream (only the LAST nNumbits will be added)
		 \param nNumbits number of bits of lval that will be added to h264 stream (counting from left)
	 */
	void addbits (unsigned long lval, int nNumbits);

	//! Adds lval to the end of h264 bitstream using exp golomb coding for unsigned values
	/*!
		 \param nVal value to add at the end of the h264 stream
	 */
	void addexpgolombunsigned (unsigned long lval);

	//! Adds lval to the end of h264 bitstream using exp golomb coding for signed values
	/*!
		 \param nVal value to add at the end of the h264 stream
	 */
	void addexpgolombsigned (long lval);

	//! Adds 0 to the end of h264 bistream in order to leave a byte aligned stream (It will insert seven 0 maximum)
	void dobytealign();

	//! Adds cByte (8 bits) to the end of h264 bitstream. This function it is optimized in byte aligned streams.
	/*!
		 \param cByte value to add at the end of the h264 stream (from 0 to 255)
	 */
	void addbyte (unsigned char cByte);

	//! Close the h264 stream saving to disk the last remaing bits in buffer
	void close();
};

#endif /* CJOCH264BITSTREAM_H_ */

/*
 * CJOCh264bitstream.cpp
 *
 *  Created on: Aug 23, 2014
 *      Author: Jordi Cenzano (www.jordicenzano.name)
 */

#include "CJOCh264bitstream.h"

CJOCh264bitstream::CJOCh264bitstream(FILE *pOutBinaryFile)
{
	clearbuffer();

	m_pOutFile = pOutBinaryFile;
}

CJOCh264bitstream::~CJOCh264bitstream()
{
	close();
}

void CJOCh264bitstream::clearbuffer()
{
	memset (&m_buffer,0,sizeof (unsigned char)* BUFFER_SIZE_BITS);
	m_nLastbitinbuffer = 0;
	m_nStartingbyte = 0;
}

int CJOCh264bitstream::getbitnum (unsigned long lval, int nNumbit)
{
	int lrc = 0;

	unsigned long lmask = (unsigned long) pow((unsigned long)2,(unsigned long)nNumbit);
	if ((lval & lmask) > 0)
		lrc = 1;

	return lrc;
}

void CJOCh264bitstream::addbittostream (int nVal)
{
	if (m_nLastbitinbuffer >= BUFFER_SIZE_BITS)
	{
		//Must be aligned, no need to do dobytealign();
		savebufferbyte();
	}

	//Use circular buffer of BUFFER_SIZE_BYTES
	int nBytePos = (m_nStartingbyte + (m_nLastbitinbuffer / 8)) % BUFFER_SIZE_BYTES;
	//The first bit to add is on the left
	int nBitPosInByte = 7 - m_nLastbitinbuffer % 8;

	//Get the byte value from buffer
	int nValTmp = m_buffer[nBytePos];

	//Change the bit
	if (nVal > 0)
		nValTmp = (nValTmp | (int) pow(2,nBitPosInByte));
	else
		nValTmp = (nValTmp & ~((int) pow(2,nBitPosInByte)));

	//Save the new byte value to the buffer
	m_buffer[nBytePos] = (unsigned char) nValTmp;

	m_nLastbitinbuffer++;
}

void CJOCh264bitstream::addbytetostream (int nVal)
{
	if (m_nLastbitinbuffer >= BUFFER_SIZE_BITS)
	{
		//Must be aligned, no need to do dobytealign();
		savebufferbyte();
	}

	//Used circular buffer of BUFFER_SIZE_BYTES
	int nBytePos = (m_nStartingbyte + (m_nLastbitinbuffer / 8)) % BUFFER_SIZE_BYTES;
	//The first bit to add is on the left
	int nBitPosInByte = 7 - m_nLastbitinbuffer % 8;

	//Check if it is byte aligned
	if (nBitPosInByte != 7)
		throw "Error: inserting not aligment byte";

	//Add all byte to buffer
	m_buffer[nBytePos] = (unsigned char) nVal;

	m_nLastbitinbuffer = m_nLastbitinbuffer + 8;
}

void CJOCh264bitstream::dobytealign()
{
	//Check if the last bit in buffer is multiple of 8
	int nr = m_nLastbitinbuffer % 8;
	if ((nr % 8) != 0)
		m_nLastbitinbuffer = m_nLastbitinbuffer + (8 - nr);
}

void CJOCh264bitstream::savebufferbyte(bool bemulationprevention)
{
	bool bemulationpreventionexecuted = false;

	if (m_pOutFile == NULL)
		throw "Error: out file is NULL";

	//Check if the last bit in buffer is multiple of 8
	if ((m_nLastbitinbuffer % 8)  != 0)
		throw "Error: Save to file must be byte aligned";

	if ((m_nLastbitinbuffer / 8) <= 0)
		throw "Error: NO bytes to save";

	if (bemulationprevention == true)
	{
		//Emulation prevention will be used:
		/*As per h.264 spec,
		rbsp_data shouldn't contain
				- 0x 00 00 00
				- 0x 00 00 01
				- 0x 00 00 02
				- 0x 00 00 03

		rbsp_data shall be in the following way
				- 0x 00 00 03 00
				- 0x 00 00 03 01
				- 0x 00 00 03 02
				- 0x 00 00 03 03
		*/

		//Check if emulation prevention is needed (emulation prevention is byte align defined)
		if ((m_buffer[((m_nStartingbyte + 0) % BUFFER_SIZE_BYTES)] == 0x00)&&(m_buffer[((m_nStartingbyte + 1) % BUFFER_SIZE_BYTES)] == 0x00)&&((m_buffer[((m_nStartingbyte + 2) % BUFFER_SIZE_BYTES)] = 0x00)||(m_buffer[((m_nStartingbyte + 2) % BUFFER_SIZE_BYTES)] = 0x01)||(m_buffer[((m_nStartingbyte + 2) % BUFFER_SIZE_BYTES)] = 0x02)||(m_buffer[((m_nStartingbyte + 2) % BUFFER_SIZE_BYTES)] = 0x03)))
		{
			int nbuffersaved = 0;
			unsigned char cEmulationPreventionByte = H264_EMULATION_PREVENTION_BYTE;

			//Save 1st byte
			fwrite(&m_buffer[((m_nStartingbyte + nbuffersaved) % BUFFER_SIZE_BYTES)], 1, 1, m_pOutFile);
			nbuffersaved ++;

			//Save 2st byte
			fwrite(&m_buffer[((m_nStartingbyte + nbuffersaved) % BUFFER_SIZE_BYTES)], 1, 1, m_pOutFile);
			nbuffersaved ++;

			//Save emulation prevention byte
			fwrite(&cEmulationPreventionByte, 1, 1, m_pOutFile);

			//Save the rest of bytes (usually 1)
			while (nbuffersaved < BUFFER_SIZE_BYTES)
			{
				fwrite(&m_buffer[((m_nStartingbyte + nbuffersaved) % BUFFER_SIZE_BYTES)], 1, 1, m_pOutFile);
				nbuffersaved++;
			}

			//All bytes in buffer are saved, so clear the buffer
			clearbuffer();

			bemulationpreventionexecuted = true;
		}
	}

	if (bemulationpreventionexecuted == false)
	{
		//No emulation prevention was used

		//Save the oldest byte in buffer
		fwrite(&m_buffer[m_nStartingbyte], 1, 1, m_pOutFile);

		//Move the index
		m_buffer[m_nStartingbyte] = 0;
		m_nStartingbyte++;
		m_nStartingbyte = m_nStartingbyte % BUFFER_SIZE_BYTES;
		m_nLastbitinbuffer = m_nLastbitinbuffer - 8;
	}
}

//Public functions

void CJOCh264bitstream::addbits (unsigned long lval, int nNumbits)
{
	if ((nNumbits <= 0 )||(nNumbits > 64))
		throw "Error: numbits must be between 1 ... 64";

	int nBit = 0;
	int n = nNumbits-1;
	while (n >= 0)
	{
		nBit = getbitnum (lval,n);
		n--;

		addbittostream (nBit);
	}
}

void CJOCh264bitstream::addbyte (unsigned char cByte)
{
	//Byte alignment optimization
	if ((m_nLastbitinbuffer % 8)  == 0)
	{
		addbytetostream (cByte);
	}
	else
	{
		addbits (cByte, 8);
	}
}

void CJOCh264bitstream::addexpgolombunsigned (unsigned long lval)
{
	//it implements unsigned exp golomb coding

	unsigned long lvalint = lval + 1;
	int nnumbits = log2 (lvalint) + 1;

	for (int n = 0; n < (nnumbits-1); n++)
		addbits(0,1);

	addbits(lvalint,nnumbits);
}

void CJOCh264bitstream::addexpgolombsigned (long lval)
{
	//it implements a signed exp golomb coding

	unsigned long lvalint = abs(lval) * 2 - 1;
	if (lval <= 0)
		lvalint =  2 * abs(lval);

	addexpgolombunsigned(lvalint);
}

void CJOCh264bitstream::add4bytesnoemulationprevention (unsigned int nVal, bool bDoAlign)
{
	//Used to add NAL header stream
	//Remember: NAL header is byte oriented
	if (bDoAlign == true)
		dobytealign();

	if ((m_nLastbitinbuffer % 8) != 0)
		throw "Error: Save to file must be byte aligned";

	while (m_nLastbitinbuffer != 0)
		savebufferbyte();

	unsigned char cbyte = (nVal & 0xFF000000)>>24;
	fwrite(&cbyte, 1, 1, m_pOutFile);

	cbyte = (nVal & 0x00FF0000)>>16;
	fwrite(&cbyte, 1, 1, m_pOutFile);

	cbyte = (nVal & 0x0000FF00)>>8;
	fwrite(&cbyte, 1, 1, m_pOutFile);

	cbyte = (nVal & 0x000000FF);
	fwrite(&cbyte, 1, 1, m_pOutFile);
}

void CJOCh264bitstream::close()
{
	//Flush the data in stream buffer

	dobytealign();

	while (m_nLastbitinbuffer != 0)
		savebufferbyte();
}

CJOCh264encoder (.h and .cpp)


/*
 * CJOCh264encoder.h
 *
 *  Created on: Aug 17, 2014
 *      Author: Jordi Cenzano (www.jordicenzano.name)
 */

#ifndef CJOCH264ENCODER_H_
#define CJOCH264ENCODER_H_

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#include "CJOCh264bitstream.h"

//! h264 encoder class
/*!
 It is used to create the h264 compliant stream
 */
class CJOCh264encoder : CJOCh264bitstream
{
public:

	/**
	 * Allowed sample formats
	 */
	enum enSampleFormat
	{
		SAMPLE_FORMAT_YUV420p//!< SAMPLE_FORMAT_YUV420p
	};

private:
	/*!Set the used Y macroblock size for I PCM in YUV420p */
	#define MACROBLOCK_Y_WIDTH	16
	#define MACROBLOCK_Y_HEIGHT	16

	/*!Set time base in Hz */
	#define TIME_SCALE_IN_HZ 	27000000

	/*!Pointer to pixels */
	typedef struct
	{
		unsigned char *pYCbCr;
	}YUV420p_frame_t;

	/*! Frame  */
	typedef struct
	{
		enSampleFormat sampleformat; 	/*!< Sample format */
		unsigned int nYwidth; 			/*!< Y (luminance) block width in pixels */
		unsigned int nYheight;			/*!< Y (luminance) block height in pixels */
		unsigned int nCwidth;			/*!< C (Crominance) block width in pixels */
		unsigned int nCheight;			/*!< C (Crominance) block height in pixels */

		unsigned int nYmbwidth;			/*!< Y (luminance) macroblock width in pixels */
		unsigned int nYmbheight;		/*!< Y (luminance) macroblock height in pixels */
		unsigned int nCmbwidth;			/*!< Y (Crominance) macroblock width in pixels */
		unsigned int nCmbheight;		/*!< Y (Crominance) macroblock height in pixels */

		YUV420p_frame_t yuv420pframe;	/*!< Pointer to current frame data */
		unsigned int nyuv420pframesize;	/*!< Size in bytes of yuv420pframe */
	}frame_t;

	/*! The frame var*/
	frame_t m_frame;

	/*! The frames per second var*/
	int m_nFps;

	/*! Number of frames sent to the output */
	unsigned long m_lNumFramesAdded;

	//! Frees the frame yuv420pframe allocated memory
	void free_video_src_frame ();

	//! Allocs the frame yuv420pframe memory according to the frame properties
	void alloc_video_src_frame ();

	//! Creates SPS NAL and add it to the output
	/*!
		\param nImW Frame width in pixels
		\param nImH Frame height in pixels
		\param nMbW macroblock width in pixels
		\param nMbH macroblock height in pixels
		\param nFps frames x second (tipical values are: 25, 30, 50, etc)
		\param nSARw Indicates the horizontal size of the sample aspect ratio (tipical values are:1, 4, 16, etc)
		\param nSARh Indicates the vertical size of the sample aspect ratio (tipical values are:1, 3, 9, etc)
	 */
	void create_sps (int nImW, int nImH, int nMbW, int nMbH, int nFps, int nSARw, int nSARh);

	//! Creates PPS NAL and add it to the output
	void create_pps ();

	//! Creates Slice NAL and add it to the output
	/*!
		\param lFrameNum number of frame
	 */
	void create_slice_header(unsigned long lFrameNum);

	//! Creates macroblock header and add it to the output
	void create_macroblock_header ();

	//! Creates the slice footer and add it to the output
	void create_slice_footer();

	//! Creates SPS NAL and add it to the output
	/*!
		\param nYpos First vertical macroblock pixel inside the frame
		\param nYpos nXpos horizontal macroblock pixel inside the frame
	 */
	void create_macroblock(unsigned int nYpos, unsigned int nXpos);

public:
	//! Constructor
	/*!
		 \param pOutFile The output file pointer
	 */
	CJOCh264encoder(FILE *pOutFile);

	//! Destructor
	virtual ~CJOCh264encoder();

	//! Initializes the coder
	/*!
		\param nImW Frame width in pixels
		\param nImH Frame height in pixels
		\param nFps Desired frames per second of the output file (typical values are: 25, 30, 50, etc)
		\param SampleFormat Sample format if the input file. In this implementation only SAMPLE_FORMAT_YUV420p is allowed
		\param nSARw Indicates the horizontal size of the sample aspect ratio (typical values are:1, 4, 16, etc)
		\param nSARh Indicates the vertical size of the sample aspect ratio (typical values are:1, 3, 9, etc)
	*/
	void IniCoder (int nImW, int nImH, int nImFps, CJOCh264encoder::enSampleFormat SampleFormat, int nSARw = 1, int nSARh = 1);

	//! Returns the frame pointer
	/*!
		\return Frame pointer ready to fill with frame pixels data (the format to fill the data is indicated by SampleFormat parameter when the coder is initialized
	*/
	void* GetFramePtr();

	//! Returns the allocated frame memory in bytes
	/*!
		\return The allocated memory to store the frame data
	*/
	unsigned int GetFrameSize();

	//! It codes the frame that is in frame memory a it saves the coded data to disc
	void CodeAndSaveFrame();

	//! Returns number of coded frames
	/*!
		\return The number of coded frames
	*/
	unsigned long GetSavedFrames();

	//! Flush all data and save the trailing bits
	void CloseCoder ();
};

#endif /* CJOCH264ENCODER_H_ */

/*
 * CJOCh264encoder.cpp
 *
 *  Created on: Aug 17, 2014
 *      Author: Jordi Cenzano (www.jordicenzano.name)
 */

#include "CJOCh264encoder.h"

//Private functions

//Contructor
CJOCh264encoder::CJOCh264encoder(FILE *pOutFile):CJOCh264bitstream(pOutFile)
{
	m_lNumFramesAdded = 0;

	memset (&m_frame, 0, sizeof (frame_t));
	m_nFps = 25;
}

//Destructor
CJOCh264encoder::~CJOCh264encoder()
{
	free_video_src_frame ();
}

//Free the allocated video frame mem
void CJOCh264encoder::free_video_src_frame ()
{
	if (m_frame.yuv420pframe.pYCbCr != NULL)
		free (m_frame.yuv420pframe.pYCbCr);

	memset (&m_frame, 0, sizeof (frame_t));
}

//Alloc mem to store a video frame
void CJOCh264encoder::alloc_video_src_frame ()
{
	if (m_frame.yuv420pframe.pYCbCr != NULL)
		throw "Error: null values in frame";

	int nYsize = m_frame.nYwidth * m_frame.nYheight;
	int nCsize = m_frame.nCwidth * m_frame.nCheight;
	m_frame.nyuv420pframesize = nYsize + nCsize + nCsize;

	m_frame.yuv420pframe.pYCbCr = (unsigned char*) malloc (sizeof (unsigned char) * m_frame.nyuv420pframesize);

	if (m_frame.yuv420pframe.pYCbCr == NULL)
		throw "Error: memory alloc";
}

//Creates and saves the NAL SPS (including VUI) (one per file)
void CJOCh264encoder::create_sps (int nImW, int nImH, int nMbW, int nMbH, int nFps, int nSARw, int nSARh)
{
	add4bytesnoemulationprevention (0x000001); // NAL header
	addbits (0x0,1); // forbidden_bit
	addbits (0x3,2); // nal_ref_idc
	addbits (0x7,5); // nal_unit_type : 7 ( SPS )
	addbits (0x42,8); // profile_idc = baseline ( 0x42 )
	addbits (0x0,1); // constraint_set0_flag
	addbits (0x0,1); // constraint_set1_flag
	addbits (0x0,1); // constraint_set2_flag
	addbits (0x0,1); // constraint_set3_flag
	addbits (0x0,1); // constraint_set4_flag
	addbits (0x0,1); // constraint_set5_flag
	addbits (0x0,2); // reserved_zero_2bits /* equal to 0 */
	addbits (0x0a,8); // level_idc: 3.1 (0x0a)
	addexpgolombunsigned(0); // seq_parameter_set_id
	addexpgolombunsigned(0); // log2_max_frame_num_minus4
	addexpgolombunsigned(0); // pic_order_cnt_type
	addexpgolombunsigned(0); // log2_max_pic_order_cnt_lsb_minus4
	addexpgolombunsigned(0); // max_num_refs_frames
	addbits(0x0,1); // gaps_in_frame_num_value_allowed_flag

	int nWinMbs = nImW / nMbW;
	addexpgolombunsigned(nWinMbs-1); // pic_width_in_mbs_minus_1
	int nHinMbs = nImH / nMbH;
	addexpgolombunsigned(nHinMbs-1); // pic_height_in_map_units_minus_1

	addbits(0x1,1); // frame_mbs_only_flag
	addbits(0x0,1); // direct_8x8_interfernce
	addbits(0x0,1); // frame_cropping_flag
	addbits(0x1,1); // vui_parameter_present

	//VUI parameters (AR, timming)
	addbits(0x1,1); //aspect_ratio_info_present_flag
	addbits(0xFF,8); //aspect_ratio_idc = Extended_SAR

	//AR
	addbits(nSARw, 16); //sar_width
	addbits(nSARh, 16); //sar_height

	addbits(0x0,1); //overscan_info_present_flag
	addbits(0x0,1); //video_signal_type_present_flag
	addbits(0x0,1); //chroma_loc_info_present_flag
	addbits(0x1,1); //timing_info_present_flag

	unsigned int nnum_units_in_tick = TIME_SCALE_IN_HZ / (2*nFps);
	addbits(nnum_units_in_tick,32); //num_units_in_tick
	addbits(TIME_SCALE_IN_HZ,32); //time_scale
	addbits(0x1,1);  //fixed_frame_rate_flag

	addbits(0x0,1);  //nal_hrd_parameters_present_flag
	addbits(0x0,1);  //vcl_hrd_parameters_present_flag
	addbits(0x0,1);  //pic_struct_present_flag
	addbits(0x0,1);  //bitstream_restriction_flag
	//END VUI

	addbits(0x0,1); // frame_mbs_only_flag
	addbits(0x1,1); // rbsp stop bit

	dobytealign();
}

//Creates and saves the NAL PPS (one per file)
void CJOCh264encoder::create_pps ()
{
	add4bytesnoemulationprevention (0x000001); // NAL header
	addbits (0x0,1); // forbidden_bit
	addbits (0x3,2); // nal_ref_idc
	addbits (0x8,5); // nal_unit_type : 8 ( PPS )
	addexpgolombunsigned(0); // pic_parameter_set_id
	addexpgolombunsigned(0); // seq_parameter_set_id
	addbits (0x0,1); // entropy_coding_mode_flag
	addbits (0x0,1); // bottom_field_pic_order_in frame_present_flag
	addexpgolombunsigned(0); // nun_slices_groups_minus1
	addexpgolombunsigned(0); // num_ref_idx10_default_active_minus
	addexpgolombunsigned(0); // num_ref_idx11_default_active_minus
	addbits (0x0,1); // weighted_pred_flag
	addbits (0x0,2); // weighted_bipred_idc
	addexpgolombsigned(0); // pic_init_qp_minus26
	addexpgolombsigned(0); // pic_init_qs_minus26
	addexpgolombsigned(0); // chroma_qp_index_offset
	addbits (0x0,1); //deblocking_filter_present_flag
	addbits (0x0,1); // constrained_intra_pred_flag
	addbits (0x0,1); //redundant_pic_ent_present_flag
	addbits(0x1,1); // rbsp stop bit

	dobytealign();
}

//Creates and saves the NAL SLICE (one per frame)
void CJOCh264encoder::create_slice_header(unsigned long lFrameNum)
{
	add4bytesnoemulationprevention (0x000001); // NAL header
	addbits (0x0,1); // forbidden_bit
	addbits (0x3,2); // nal_ref_idc
	addbits (0x5,5); // nal_unit_type : 5 ( Coded slice of an IDR picture  )
	addexpgolombunsigned(0); // first_mb_in_slice
	addexpgolombunsigned(7); // slice_type
	addexpgolombunsigned(0); // pic_param_set_id

	unsigned char cFrameNum = lFrameNum % 16; //(2⁴)
	addbits (cFrameNum,4); // frame_num ( numbits = v = log2_max_frame_num_minus4 + 4)

	unsigned long lidr_pic_id = lFrameNum % 512;
	//idr_pic_flag = 1
	addexpgolombunsigned(lidr_pic_id); // idr_pic_id
	addbits(0x0,4); // pic_order_cnt_lsb (numbits = v = log2_max_fpic_order_cnt_lsb_minus4 + 4)
	addbits(0x0,1); //no_output_of_prior_pics_flag
	addbits(0x0,1); //long_term_reference_flag
	addexpgolombsigned(0); //slice_qp_delta

	//Probably NOT byte aligned!!!
}

//Creates and saves the SLICE footer (one per SLICE)
void CJOCh264encoder::create_slice_footer()
{
	addbits(0x1,1); // rbsp stop bit
}

//Creates and saves the macroblock header(one per macroblock)
void CJOCh264encoder::create_macroblock_header ()
{
	addexpgolombunsigned(25); // mb_type (I_PCM)
}

//Creates & saves a macroblock (coded INTRA 16x16)
void CJOCh264encoder::create_macroblock(unsigned int nYpos, unsigned int nXpos)
{
	unsigned int x,y;

	create_macroblock_header();

	dobytealign();

	//Y
	unsigned int nYsize = m_frame.nYwidth * m_frame.nYheight;
	for(y = nYpos * m_frame.nYmbheight; y < (nYpos+1) * m_frame.nYmbheight; y++)
	{
		for (x = nXpos * m_frame.nYmbwidth; x < (nXpos+1) * m_frame.nYmbwidth; x++)
		{
			addbyte (m_frame.yuv420pframe.pYCbCr[(y * m_frame.nYwidth +  x)]);
		}
	}

	//Cb
	unsigned int nCsize = m_frame.nCwidth * m_frame.nCheight;
	for(y = nYpos * m_frame.nCmbheight; y < (nYpos+1) * m_frame.nCmbheight; y++)
	{
		for (x = nXpos * m_frame.nCmbwidth; x < (nXpos+1) * m_frame.nCmbwidth; x++)
		{
			addbyte(m_frame.yuv420pframe.pYCbCr[nYsize + (y * m_frame.nCwidth +  x)]);
		}
	}

	//Cr
	for(y = nYpos * m_frame.nCmbheight; y < (nYpos+1) * m_frame.nCmbheight; y++)
	{
		for (x = nXpos * m_frame.nCmbwidth; x < (nXpos+1) * m_frame.nCmbwidth; x++)
		{
			addbyte(m_frame.yuv420pframe.pYCbCr[nYsize + nCsize + (y * m_frame.nCwidth +  x)]);
		}
	}
}

//public functions

//Initilizes the h264 coder (mini-coder)
void CJOCh264encoder::IniCoder (int nImW, int nImH, int nImFps, CJOCh264encoder::enSampleFormat SampleFormat, int nSARw, int nSARh)
{
	m_lNumFramesAdded = 0;
	if (SampleFormat != SAMPLE_FORMAT_YUV420p)
		throw "Error: SAMPLE FORMAT not allowed. Only yuv420p is allowed in this version";

	free_video_src_frame ();

	//Ini vars
	m_frame.sampleformat = SampleFormat;
	m_frame.nYwidth = nImW;
	m_frame.nYheight = nImH;
	if (SampleFormat == SAMPLE_FORMAT_YUV420p)
	{
		//Set macroblock Y size
		m_frame.nYmbwidth = MACROBLOCK_Y_WIDTH;
		m_frame.nYmbheight = MACROBLOCK_Y_HEIGHT;
		//Set macroblock C size (in YUV420 is 1/2 of Y)
		m_frame.nCmbwidth = MACROBLOCK_Y_WIDTH/2;
		m_frame.nCmbheight = MACROBLOCK_Y_HEIGHT/2;
		//Set C size
		m_frame.nCwidth = m_frame.nYwidth / 2;
		m_frame.nCheight = m_frame.nYheight / 2;
		//In this implementation only picture sizes multiples of macroblock size (16x16) are allowed
		if (((nImW % MACROBLOCK_Y_WIDTH) != 0)||((nImH % MACROBLOCK_Y_HEIGHT) != 0))
			throw "Error: size not allowed. Only multiples of macroblock are allowed (macroblock size is: 16x16)";
	}

	m_nFps = nImFps;

	//Alloc mem for 1 frame
	alloc_video_src_frame ();

	//Create h264 SPS & PPS
	create_sps (m_frame.nYwidth , m_frame.nYheight, m_frame.nYmbwidth, m_frame.nYmbheight, nImFps , nSARw, nSARh);
	create_pps ();
}

//Returns the frame pointer to load the video frame
void* CJOCh264encoder::GetFramePtr()
{
	if (m_frame.yuv420pframe.pYCbCr == NULL)
		throw "Error: video frame is null (not initialized)";

	return (void*) m_frame.yuv420pframe.pYCbCr;
}

//Returns the the allocated size for video frame
unsigned int CJOCh264encoder::GetFrameSize()
{
	return m_frame.nyuv420pframesize;
}

//Codifies & save the video frame (it only uses 16x16 intra PCM -> NO COMPRESSION!)
void CJOCh264encoder::CodeAndSaveFrame()
{
	//The slice header is not byte aligned, so the first macroblock header is not byte aligned
	create_slice_header (m_lNumFramesAdded);

	//Loop over macroblock size
	unsigned int y,x;
	for (y = 0; y < m_frame.nYheight / m_frame.nYmbheight; y++)
	{
		for (x = 0; x < m_frame.nYwidth / m_frame.nYmbwidth; x++)
		{
			create_macroblock(y, x);
		}
	}

	create_slice_footer();
	dobytealign();

	m_lNumFramesAdded++;
}

//Returns the number of codified frames
unsigned long CJOCh264encoder::GetSavedFrames()
{
	return m_lNumFramesAdded;
}

//Closes the h264 coder saving the last bits in the buffer
void CJOCh264encoder::CloseCoder ()
{
	close();
}



Future work

  • Evolve the code implementing h264 intra frame compression techniques, such as intra prediction, CAVLC, etc.
  • Implement h264 inter frame compression techniques, such block matching

6 Responses to A minimal h264 “encoder” (C++)

  1. Nabeel says:

    Hello, Could you please help me for encoding and decoding the life time stream of video capturing from webcam? or let us CCTV camera.

  2. Thanks for posting your project. This is a nice step up from the original tiny encoder and it is good to see the sps and pps creation code.
    Roger

  3. m4c0 says:

    What about using GitHub for this code? It’s quite hard to follow it on a WP site…

    • Thanks for your feedback. I agree with you that github is a better place for code. My latest experiments are there.
      Will try to put this one there too, but I can not commit to an ETA

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s

%d bloggers like this:
